Hikvision DS-2CD3346SWDA4-L 4MP Dual-Light Full-Color Turret Network Camera – 2560×1440, 30m White Light & IR, Built-in Mic & Speaker, Two-Way Audio, IP67, PoE 海康威视 DS-2CD3346SWDA4-L 400万双光全彩半球型网络摄像机

Description

Hikvision DS-2CD3346SWDA4-L 4MP Dual-Light Full-Color Turret Camera — Clear imaging day and night with intelligent audio and two-way talk.

The DS-2CD3346SWDA4-L is a 400万像素（4MP）turret camera designed for round-the-clock surveillance. Its dual-light system automatically switches between white light and infrared illumination, delivering full-color images in low-light conditions and clear black-and-white footage in complete darkness. The built-in microphone and speaker enable full-duplex two-way audio, allowing you to communicate remotely via the mobile app. Intelligent detection functions (line crossing, intrusion) trigger accurate alerts.

Key Features:
✅ 4MP 2560×1440 Resolution: 1/1.8″ Progressive Scan CMOS for high-definition clarity.
✅ Dual-Light Illumination: White light up to 30m + IR up to 30m, auto-switching.
✅ Built-in Mic & Speaker: Supports full-duplex two-way audio and mobile app communication.
✅ Intelligent Detection: Line crossing and intrusion detection.
✅ H.265/H.264/MJPEG Compression: Efficient encoding saves bandwidth and storage.
✅ 120dB WDR & 3D DNR: Clear images in challenging lighting conditions.
✅ IP67 Weatherproof: Dust-tight and water-resistant for outdoor use.
✅ PoE or DC12V Power: Flexible installation options.

Specifications:

• Brand: Hikvision

• Model: DS-2CD3346SWDA4-L (2.8mm)

• Type: Dual-Light Full-Color Turret Network Camera

• Image Sensor: 1/1.8″ Progressive Scan CMOS

• Max Resolution: 2560 × 1440 @ 25fps

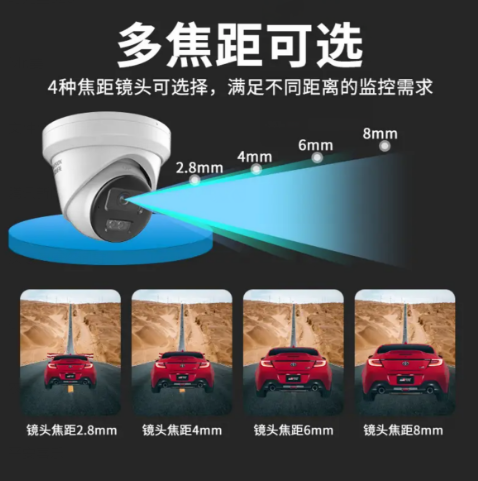

• Lens: 2.8mm Fixed

• Min. Illumination: Color 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light

• Shutter Speed: 1/3s to 1/100,000s

• Day/Night: ICR Infrared Filter

• WDR: 120 dB

• Image Enhancement: BLC, 3D DNR

• Video Compression: H.265 / H.264 / MJPEG

• Bit Rate: 32 Kbps to 8 Mbps

• Audio: Built-in Microphone & Speaker, Full-Duplex Two-Way Audio

• Intelligent Detection: Line Crossing, Intrusion Detection

• Illumination Distance: White Light 30m / IR 30m

• Network Interface: 1 × RJ45 10M/100M Self-Adaptive

• Protocol: ONVIF, ISAPI, GB28181

• Power: DC 12V ± 25% / PoE (802.3af)

• Power Consumption: DC12V: 5W Max; PoE: 6.5W Max

• Protection: IP67

• Operating Temperature: -30°C to 60°C

• Dimensions: Ø138 × 143 mm

• Weight: Approx. 1.2kg

What’s in the Box:

• Camera × 1

• Mounting Bracket × 1

• Screw Kit × 1

• Waterproof Connector × 1

• User Manual × 1

•

海康威视 DS-2CD3346SWDA4-L 400万双光全彩半球型摄像机——昼夜清晰成像，智能音频与双向对讲。

DS-2CD3346SWDA4-L 是一款400万像素半球型摄像机，专为全天候监控设计。双光系统自动切换白光与红外补光，在低照度环境下提供全彩画面，在全黑环境下输出清晰黑白画面。内置麦克风与扬声器，支持全双工双向语音对讲，可通过手机App远程沟通。智能侦测功能（越界、区域入侵）触发精准报警。

核心功能亮点：
✅ 400万2560×1440分辨率： 1/1.8″ Progressive Scan CMOS，高清画质。
✅ 双光补光： 白光最远30米 + 红外最远30米，自动切换。
✅ 内置麦克风与扬声器： 支持全双工双向语音对讲及手机App沟通。
✅ 智能侦测： 支持越界侦测及区域入侵侦测。
✅ H.265/H.264/MJPEG编码： 高效压缩，节省带宽与存储。
✅ 120dB宽动态 & 3D数字降噪： 复杂光照下画面清晰。
✅ IP67防护： 防尘防水，适合户外安装。
✅ PoE或DC12V供电： 安装方式灵活。

产品参数：

• 品牌：海康威视 Hikvision

• 型号：DS-2CD3346SWDA4-L (2.8mm)

• 类型：双光全彩半球型网络摄像机

• 图像传感器：1/1.8″ Progressive Scan CMOS

• 最大分辨率：2560 × 1440 @ 25fps

• 镜头：2.8mm定焦

• 最低照度：彩色 0.0005 Lux @ (F1.0, AGC ON)，0 Lux with Light

• 快门速度：1/3秒 至 1/100,000秒

• 日夜转换：ICR红外滤片式

• 宽动态：120 dB

• 图像增强：背光补偿，3D数字降噪

• 视频压缩：H.265 / H.264 / MJPEG

• 码率：32 Kbps 至 8 Mbps

• 音频：内置麦克风与扬声器，全双工双向语音

• 智能侦测：越界侦测、区域入侵侦测

• 补光距离：白光30米 / 红外30米

• 网络接口：1个RJ45 10M/100M自适应以太网口

• 接口协议：ONVIF、ISAPI、GB28181

• 电源：DC 12V ± 25% / PoE (802.3af)

• 功耗：DC12V: 5W Max；PoE: 6.5W Max

• 防护等级：IP67

• 工作温度：-30℃ 至 60℃

• 尺寸：Ø138 × 143 mm

• 重量：约1.2kg

包装清单：

• 摄像机 × 1

• 安装支架 × 1

• 螺丝包 × 1

• 防水接头 × 1

• 说明书 × 1
