Description

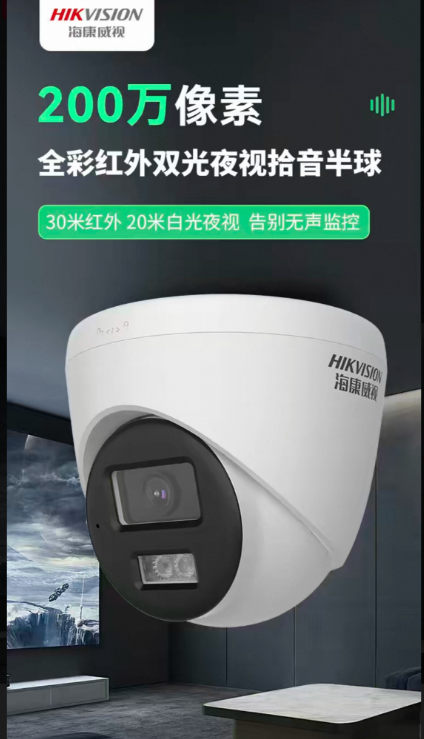

Hikvision 2MP POE Surveillance Kit — Complete plug-and-play security solution.
This comprehensive kit includes everything needed for a professional surveillance setup. The 2MP dome camera delivers full-color night vision with both IR (up to 30m) and white light (up to 20m) illumination, plus built-in microphone for audio monitoring. The 4-channel POE NVR supports H.265+ compression, 4K decoding, and up to 6TB storage. All accessories are included for immediate installation.
Camera Key Features:
✅ 2MP Full-Color Night Vision: 1/2.7″ CMOS sensor, 1920×1080 resolution, 0.01 Lux color sensitivity.
✅ Dual-Light Illumination: IR up to 30m + white light up to 20m, auto-switching for 24/7 full-color monitoring.
✅ Built-in Microphone: High-definition audio pickup, say goodbye to silent surveillance.
✅ Smart Detection: Human detection with 3D DNR, 120dB WDR for challenging lighting.
✅ IP66 Rated: Dust-tight and water-resistant for indoor/outdoor use.
NVR Key Features:
✅ 4-Channel POE NVR: Plug-and-play with 4 POE ports (IEEE 802.3af/at, ≤36W).
✅ H.265+ Compression: Efficient encoding saves bandwidth and storage.
✅ 4K Decoding: Supports up to 6MP IP camera input, 4-ch 1080p decoding.
✅ 1 SATA Bay up to 6TB: Ample storage for continuous recording.
✅ HDMI & VGA Output: Simultaneous 1080p output for local monitoring.
Included Accessories:
-
Network Cable × 1
-
Mounting Bracket × 1
-
RJ45 Connectors × 1 Set
-
Crimping Tool × 1
-
Warning Sticker × 1
Camera Specifications (DS-2CD3327WDV3-L Reference):
-
Image Sensor: 1/2.7″ Progressive Scan CMOS
-
Max Resolution: 1920 × 1080 @25fps
-
Lens: F1.0 large aperture
-
Min. Illumination: Color 0.01 Lux
-
IR Distance: Up to 30m
-
White Light Distance: Up to 20m
-
Audio: Built-in microphone
-
WDR: 120 dB
-
Protection: IP66
-
Power: DC12V / POE
NVR Specifications (DS-7104N-F1/4P Reference):
-
IP Video Input: 4-ch, up to 6MP
-
Incoming Bandwidth: 40 Mbps
-
Decoding Format: H.265+/H.265/H.264+/H.264
-
Decoding Capability: 4-ch@1080p
-
HDMI/VGA Output: 1-ch each, up to 1920×1080
-
POE Ports: 4 × RJ45 10/100 Mbps, IEEE 802.3af/at, ≤36W
-
SATA: 1 interface, up to 6TB
-
USB: 2 × USB 2.0 (rear)
-
Power: 48 VDC, 1 A
-
Consumption: ≤10 W (without HDD)
-
Dimensions: 200 × 200 × 48 mm
-
Weight: ≤1 kg
海康威视 200万 POE 监控套装——完整的即插即用安防解决方案。
本套装包含专业监控部署所需的一切。200万半球摄像机支持全彩夜视，配备红外（最远30米）和白光（最远20米）双补光，内置麦克风实现音频监控。4路POE录像机支持H.265+压缩、4K解码及最大6TB存储。所有配件齐全，开箱即可安装。
摄像机核心亮点：
✅ 200万全彩夜视： 1/2.7″ CMOS传感器，1920×1080分辨率，彩色灵敏度0.01 Lux。
✅ 双光补光： 红外最远30米 + 白光最远20米，自动切换实现24小时全彩监控。
✅ 内置麦克风： 高清拾音，告别无声监控。
✅ 智能侦测： 人形检测，支持3D数字降噪及120dB宽动态，适应复杂光照。
✅ IP66防护： 防尘防水，适合室内外安装。
录像机核心亮点：
✅ 4路POE录像机： 4个POE端口即插即用（IEEE 802.3af/at，总功率≤36W）。
✅ H.265+压缩： 高效编码，节省带宽与存储空间。
✅ 4K解码： 支持最高6MP IP摄像机接入，4路1080p解码。
✅ 1个SATA盘位，最大6TB： 充足存储，满足长时间录像需求。
✅ HDMI & VGA输出： 1080p同源输出，支持本地高清监控。
附赠配件：
-
网线 × 1
-
安装支架 × 1
-
水晶头 × 1套
-
压线钳 × 1
-
警示贴 × 1
摄像机参数（参考型号 DS-2CD3327WDV3-L）：
-
图像传感器：1/2.7″ Progressive Scan CMOS
-
最大分辨率：1920 × 1080 @25fps
-
镜头：F1.0大光圈
-
最低照度：彩色 0.01 Lux
-
红外距离：最远30米
-
白光距离：最远20米
-
音频：内置麦克风
-
宽动态：120 dB
-
防护等级：IP66
-
供电：DC12V / POE
录像机参数（参考型号 DS-7104N-F1/4P）：
-
网络视频输入：4路，最高支持6MP
-
接入带宽：40 Mbps
-
解码格式：H.265+/H.265/H.264+/H.264
-
解码能力：4路@1080p
-
HDMI/VGA输出：各1路，最高1920×1080
-
POE端口：4个RJ45 10/100 Mbps，IEEE 802.3af/at，总功率≤36W
-
SATA：1个接口，最大支持6TB
-
USB：2个USB 2.0（后置）
-
电源：48 VDC, 1 A
-
功耗：≤10 W（不含硬盘）
-
尺寸：200 × 200 × 48 mm
-
重量：≤1 kg
